Home > Products > LED Street Light > Die-casting ip65 water proof high lumen output CE & RoHs approved led street lamp 30W module led street light with rubber cable

Die-casting ip65 water proof high lumen output CE & RoHs approved led street lamp 30W module led street light with rubber cable

Product Description

Die-casting ip65 water proof high lumen output CE & RoHs approved LED Street Lamp 30W module led street light with rubber cable toughened glass   Main parameters of led street lamp 30w

Model No.

LX-SL24B-30

Equivalent

120-150W High Pressure Sodium Lamp

LED Light Source

24pcs SMD3030

LED Luminous Efficiency

>120-130 lm/w

Lamp Total Power

30W

Power Efficiency

>95%

LED Luminous Flux

>3600 lm

Lamp Rated Luminous Flux

>3000 lm

Lamp Rated Luminous Efficiency

>100 lm/W

Color Rendering Index(CRI)

Ra>85

Color Temperature

Cool white: 5700-8000K

Pure white: 4500-5500K

Warm white: 2700-3500K

Beam Angle

150x70°

Input Voltage

AC90-305V / MEAN WELL Driver

Frequency Range

47-63Hz

Power Factor(PF)

>0.95

Total Harmonic Distortion(THD)

< 15%

Storage Temperature

-40--+80

Working Environment

-40--+50 ; 10%-95%RH

Junction Temperature(Tj)

60 ± 10%(ta=25)

Light Body and Lampshade Material

Aluminum Alloy

Working Lifetime

> 50,000hrs

IP Rating

IP65

Note: For this model series street light, the wattage from 30 to 320w are available, but for LX-SL24 street light(with 24pcs LED inside), the wattage from 30 to 60 are available   Main features led street lamp 30w1.LED Driver: Famous Brand Driver
2.Warm and cold color temperature are available
3.Quick and easy installation to minimize retrofit costs.
4.Patented heat dissipation technology for radiator;
5.Aluminum 6063 for resistance to corrosion, seawater, oil and lubricant etc;
6.Acrylic sealing reflector around LED; anodized oxide treated aluminum reflector & acrylic reflector available;
7.Closed corrosion-proof silicone ring for dustproof and waterproof
8.Beam angle: 150x70 degree. Dustproof cover, or Crystal PC reflector available
9.Lamp surface treated with anodization, corrosion-resistant, shake-resistant and artistic appearance
10.Terrific heat dissipation technology: LED temperature will be rapid transfered to fin-style heatsink through heatpipe
11.Energy saving: Replace 480-600w traditional lamps, saving more than 80%
12.Eco-friendly: No lead, mercury, UV interference
13.Long lifespan: more than 50000 hours, If LED works 11-12 hours per day, it can work over 10 years.
14.Certificate: CE,RoHS,SAA,PSE,IP65
15.Warranty: 5 years

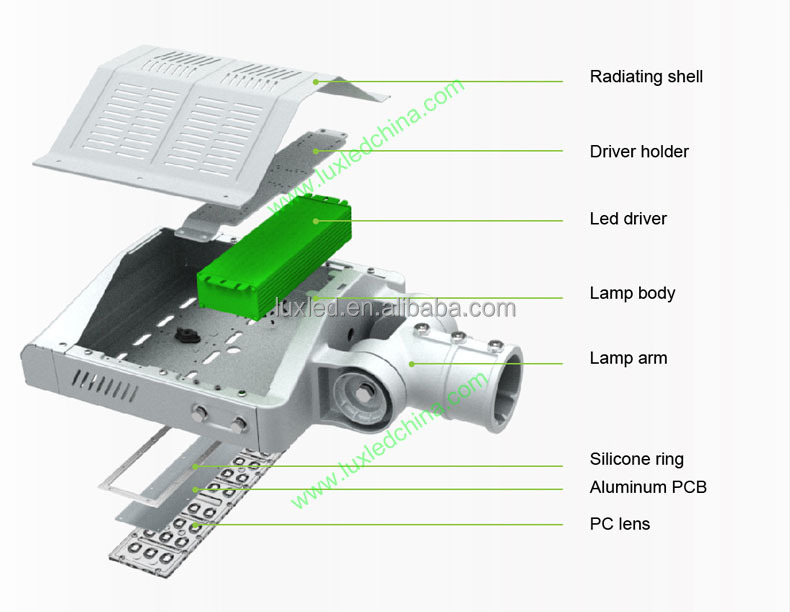

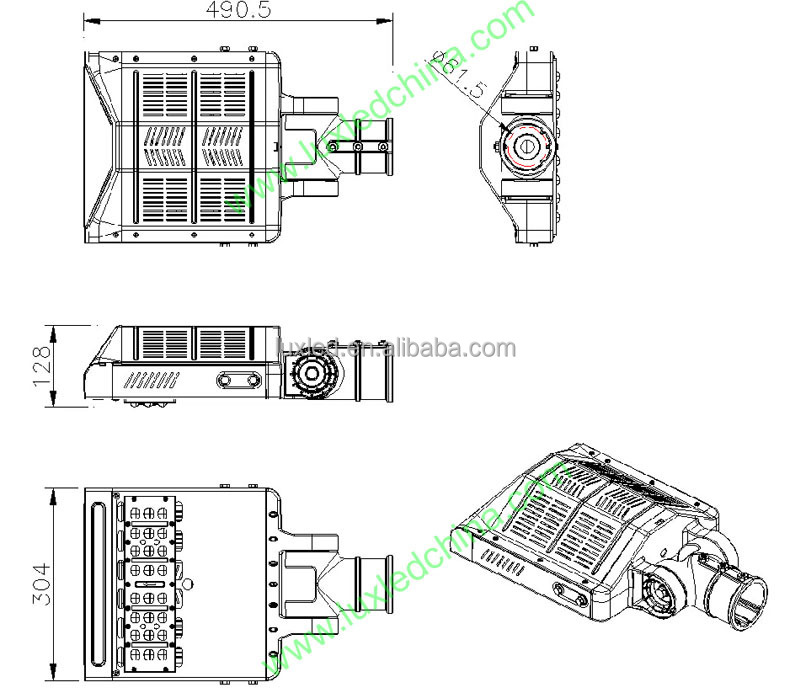

  Die-casting ip65 water proof high lumen output CE & RoHs approved led street lamp 30W module led street light with rubber cable Introduction of the parts in led street lamp 30w:Die-casting ip65 water proof high lumen output CE & RoHs approved led street lamp 30W module led street light with rubber cable Die-casting ip65 water proof high lumen output CE & RoHs approved led street lamp 30W module led street light with rubber cable Size of led strreet lamp 30w: Die-casting ip65 water proof high lumen output CE & RoHs approved led street lamp 30W module led street light with rubber cable       Application of led street lamp 30wRoad lighting, community lighting, park lot lighting, dock lightingMain Road, Sidewalk, Square, School, Park, Garden, Factory, Residential Places, Villa and so on. Die-casting ip65 water proof high lumen output CE & RoHs approved led street lamp 30W module led street light with rubber cableDie-casting ip65 water proof high lumen output CE & RoHs approved led street lamp 30W module led street light with rubber cable      Packaging Information of led street lamp 30w:
Net Weight4.6kgs
Gross Weight5.3kgs
Package Size(cm)560x395*195mm  /1 pcs
    Die-casting ip65 water proof high lumen output CE & RoHs approved led street lamp 30W module led street light with rubber cable   Attention: When you install our led street lamp 30w, pls pay attention to below information.1). In order to make sure the light can work safety and stability, the ground line should be connected the earth. 2) When connecting the wires please turn off the power, and check whether the wires are connected correctly. Never connect the wires in opposite way, or the power should not be turned on. 3) Please keeping the trip bolt being fastening and reliable, in case of the light fall down of looseness.4) When finishing connect the wires, please use the insulation gummed tape to convolve the wires, confirm the insulation and solve the waterproof problem.    Our Service: LUX is proud of its led street lamp 30w series. Our street lights are new series of energy saving products that utilize high power LEDs as effective lighting source to traditional illumination.
Based on the classic modular design-our first generation LED Flood Light,. Although LEDs were deducted, but the light efficiency is much higher and much more effective based on the dual lens design, this kind of design has really achieved a high luminous efficiency, low power consumption and excellent heat dissipation characteristics. Full waterproof design (IP65) - white tempered glass, light transmission rate can be more than 93%- the power can contact cooling body directly – light in weight, which make a breakthrough in the aspects of heavy in weight. What’s more, the production is easy to assemble and produce. The shape and structure of the production gain the protection of patents. Die-casting ip65 water proof high lumen output CE & RoHs approved led street lamp 30W module led street light with rubber cableDie-casting ip65 water proof high lumen output CE & RoHs approved led street lamp 30W module led street light with rubber cableDie-casting ip65 water proof high lumen output CE & RoHs approved led street lamp 30W module led street light with rubber cable

Contact us if you need more details on Led Street Lamp 30w. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Led Street Lamp 30w Ce、Ce Led Street Lamp 30w. If these products fail to match your need, please contact us and we would like to provide relevant information.
