LUXINT ip65 water proof high lumen output CE & RoHs approved 120w street light led fixture

Product Description

ip65 water proof high lumen output CE & RoHs approved 120w street light led fixture    Main parameters of street light led fixture

Model No.

LX-SL96B-120W

Equivalent

480-600W High Pressure Sodium Lamp

LED Light Source

96pcs SMD3030

LED Luminous Efficiency

>120-130 lm/w

Lamp Total Power

120W

Power Efficiency

>95%

LED Luminous Flux

>14400 lm

Lamp Rated Luminous Flux

>12000 lm

Lamp Rated Luminous Efficiency

>100 lm/W

Color Rendering Index(CRI)

Ra>85

Color Temperature

Cool white: 5700-8000K

Pure white: 4500-5500K

Warm white: 2700-3500K

Beam Angle

150x70°

Input Voltage

AC90-305V / MEAN WELL Driver

Frequency Range

47-63Hz

Power Factor(PF)

>0.95

Total Harmonic Distortion(THD)

< 15%

Storage Temperature

-40--+80

Working Environment

-40--+50 ; 10%-95%RH

Junction Temperature(Tj)

60 ± 10%(ta=25)

Light Body and Lampshade Material

Aluminum Alloy

Working Lifetime

> 50,000hrs

IP Rating

IP65

Note: For this model series street light, the wattage from 30 to 320w are available, but for LX-SL96 street light(with 96pcs LED inside), the wattage 120W, 160W and 200W are available   Main features of  street light led fixture 1.LED Driver: External Famous  Driver
2.Warm and cold color temperature are available
3.Quick and easy installation to minimize retrofit costs.
4.Patented heat dissipation technology for radiator;
5.Aluminum 6063 for resistance to corrosion, seawater, oil and lubricant etc;
6.Acrylic sealing reflector around LED; anodized oxide treated aluminum reflector & acrylic reflector available;
7.Closed corrosion-proof silicone ring for dustproof and waterproof
8.Beam angle: 150x70 degree. Dustproof cover, or Crystal PC reflector available
9.Lamp surface treated with anodization, corrosion-resistant, shake-resistant and artistic appearance
10.Terrific heat dissipation technology: LED temperature will be rapid transfered to fin-style heatsink through heatpipe
11.Energy saving: Replace 480-600w traditional lamps, saving more than 80%
12.Eco-friendly: No lead, mercury, UV interference
13.Long lifespan: more than 50000 hours, If LED works 11-12 hours per day, it can work over 10 years.
14.Certificate: CE,RoHS,SAA,PSE,IP65

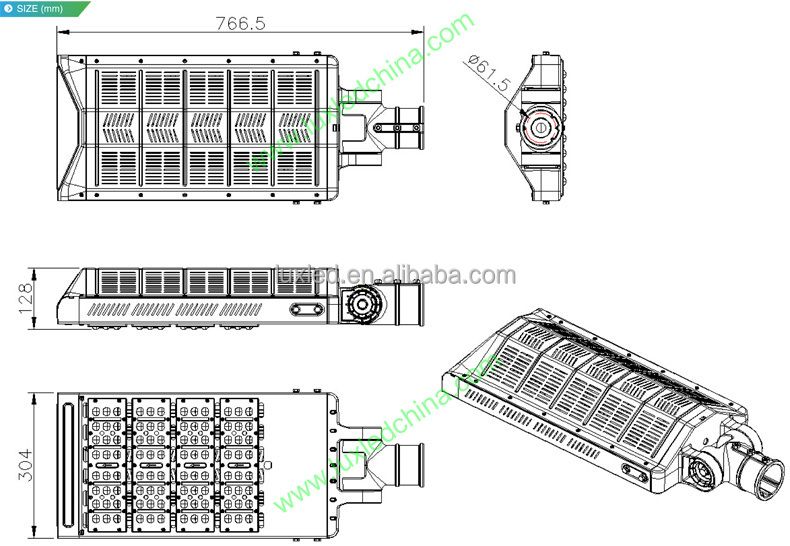

15.Warranty: 5 years LUXINT ip65 water proof high lumen output CE & RoHs approved 120w street light led fixture  Introduction of the parts in street light led fixture LUXINT ip65 water proof high lumen output CE & RoHs approved 120w street light led fixture     Size of  street light led fixture  LUXINT ip65 water proof high lumen output CE & RoHs approved 120w street light led fixture       Application of  street light led fixture Road lighting, community lighting, park lot lighting, dock lightingMain Road, Sidewalk, Square, School, Park, Garden, Factory, Residential Places, Villa and so on. LUXINT ip65 water proof high lumen output CE & RoHs approved 120w street light led fixtureLUXINT ip65 water proof high lumen output CE & RoHs approved 120w street light led fixture      Packaging Information of street light led fixture
Net Weight7.3kgs
Gross Weight8.8kgs
Package Size(cm)835x395*195mm  /1 pcs
    LUXINT ip65 water proof high lumen output CE & RoHs approved 120w street light led fixture   Attention: When you install our  street light led fixture, pls pay attention to below information.1). In order to make sure the light can work safety and stability, the ground line should be connected the earth. 2) When connecting the wires please turn off the power, and check whether the wires are connected correctly. Never connect the wires in opposite way, or the power should not be turned on. 3) Please keeping the trip bolt being fastening and reliable, in case of the light fall down of looseness.4) When finishing connect the wires, please use the insulation gummed tape to convolve the wires, confirm the insulation and solve the waterproof problem.    Our Service: LUX is proud of its  street light led fixture series. Our street lights are new series of energy saving products that utilize high power LEDs as effective lighting source to traditional illumination.
Based on the classic modular design-our first generation LED Flood Light,. Although LEDs were deducted, but the light efficiency is much higher and much more effective based on the dual lens design, this kind of design has really achieved a high luminous efficiency, low power consumption and excellent heat dissipation characteristics. Full waterproof design (IP65) - white tempered glass, light transmission rate can be more than 93%- the power can contact cooling body directly – light in weight, which make a breakthrough in the aspects of heavy in weight. What’s more, the production is easy to assemble and produce. The shape and structure of the production gain the protection of patents. LUXINT ip65 water proof high lumen output CE & RoHs approved 120w street light led fixtureLUXINT ip65 water proof high lumen output CE & RoHs approved 120w street light led fixtureLUXINT ip65 water proof high lumen output CE & RoHs approved 120w street light led fixture

Contact us if you need more details on Street Light Led Fixture. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 120w Street Light Led Fixture、Ip65 Street Light Led Fixture. If these products fail to match your need, please contact us and we would like to provide relevant information.
