LUXINT IP65 waterproof high lumen output 220v 240v 100w led street lamps

ip65 water proof high lumen output 220v 240v 100w led street lamps   Main parameters of led street lamps

Model No.	LX-SL48S-100
Equivalent	400W High Pressure Sodium Lamp
LED Light Source	48pcs SMD3030
LED Luminous Efficiency	>120-130 lm/w
Lamp Total Power	100W
Power Efficiency	>95%
LED Luminous Flux	>12000 lm
Lamp Rated Luminous Flux	>10000 lm
Lamp Rated Luminous Efficiency	>100 lm/W
Color Rendering Index(CRI)	Ra>85
Color Temperature	Cool white: 5700-8000K
	Pure white: 4500-5500K
	Warm white: 2700-3500K
Beam Angle	150x70°
Input Voltage	AC90-305V / MEAN WELL Driver
Frequency Range	47-63Hz
Power Factor(PF)	>0.95
Total Harmonic Distortion(THD)	< 15%
Storage Temperature	-40℃--+80℃
Working Environment	-40℃--+50℃ ; 10%-95%RH
Junction Temperature(Tj)	60℃ ± 10%(ta=25℃)
Light Body and Lampshade Material	Aluminum Alloy
Working Lifetime	> 50,000hrs
IP Rating	IP65

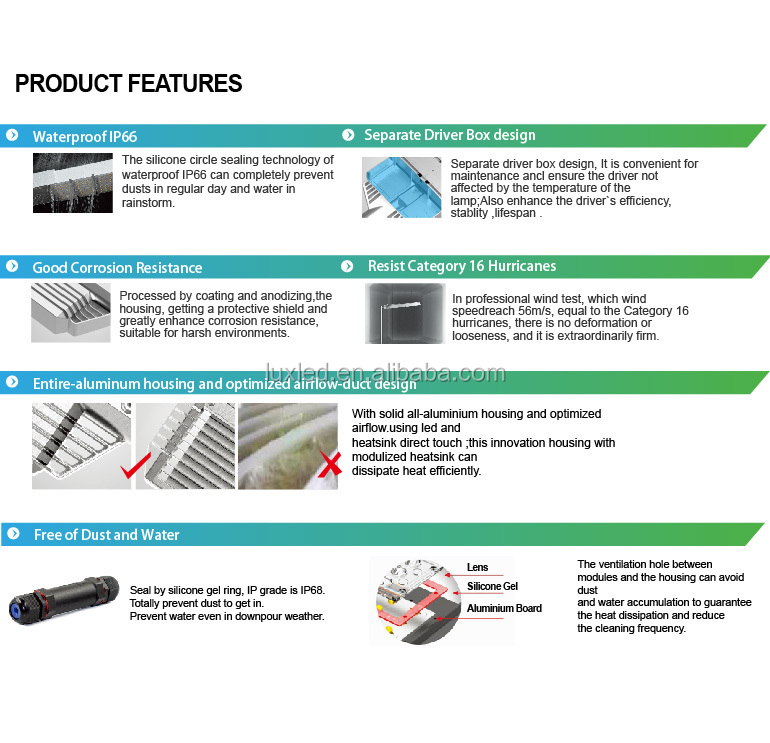

Note: For this model series street light, the wattage from 30 to 320w are available, but for LX-SL48 street light(with 48pcs LED inside), the wattage are 60w, 80w and 100w are available       Main features of led street lamps 1.LED Driver: External  driver
2.Warm and cold color temperature are available
3.Quick and easy installation to minimize retrofit costs.
4.Patented heat dissipation technology for radiator;
5.Aluminum 6063 for resistance to corrosion, seawater, oil and lubricant etc;
6.Acrylic sealing reflector around LED; anodized oxide treated aluminum reflector & acrylic reflector available;
7.Closed corrosion-proof silicone ring for dustproof and waterproof
8.Beam angle: 150x70 degree. Dustproof cover, or Crystal PC reflector available
9.Lamp surface treated with anodization, corrosion-resistant, shake-resistant and artistic appearance
11.Terrific heat dissipation technology: LED temperature will be rapid transfered to fin-style heatsink through heatpipe
11.Energy saving: Replace 240-300w traditional lamps, saving more than 80%
12.Eco-friendly: No lead, mercury, UV interference
13.Long lifespan: more than 50000 hours, If LED works 11-12 hours per day, it can work over 10 years.
14.Certificate: CE,RoHS,SAA,PSE,IP65
15.Warranty: 5 years   Lux Output of led street lamps

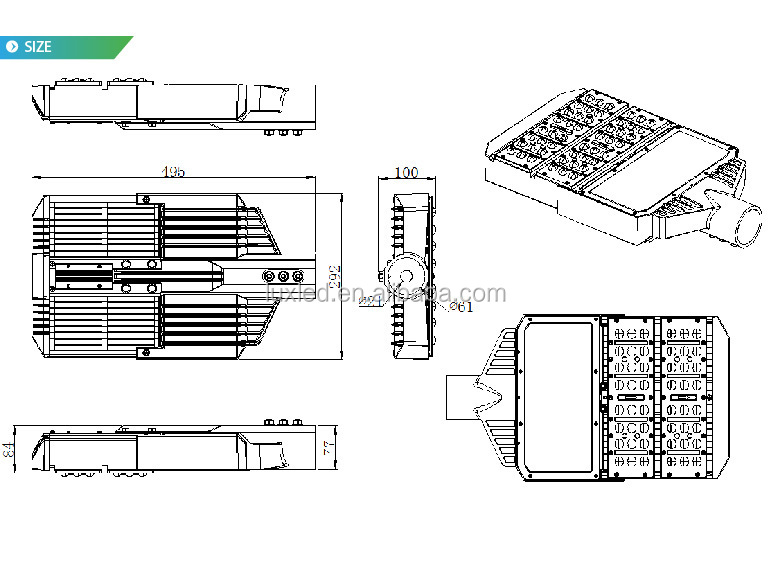

    Introduction of the parts in led street lamps     Size of led street lamps                 Application of led street lamps Road lighting, community lighting, park lot lighting, dock lighting Main Road, Sidewalk, Square, School, Park, Garden, Factory, Residential Places, Villa and so on.              Packaging Information of led street lamps

Net Weight	5.6kgs
Gross Weight	6.6kgs
Package Size(cm)	650x395*195mm  /1 pcs

              Attention:  When you install our led street lamps, pls pay attention to below information. 1). In order to make sure the light can work safety and stability, the ground line should be connected the earth.  2) When connecting the wires please turn off the power, and check whether the wires are connected correctly. Never connect the wires in opposite way, or the power should not be turned on. 3) Please keeping the trip bolt being fastening and reliable, in case of the light fall down of looseness. 4) When finishing connect the wires, please use the insulation gummed tape to convolve the wires, confirm the insulation and solve the waterproof problem.         Our Service:  LUX is proud of its led street lamps series. Our street lights are new series of energy saving products that utilize high power LEDs as effective lighting source to traditional illumination.
Based on the classic modular design-our first generation LED Flood Light,. Although LEDs were deducted, but the light efficiency is much higher and much more effective based on the dual lens design, this kind of design has really achieved a high luminous efficiency, low power consumption and excellent heat dissipation characteristics.   Full waterproof design (IP65) - white tempered glass, light transmission rate can be more than 93%- the power can contact cooling body directly – light in weight, which make a breakthrough in the aspects of heavy in weight. What’s more, the production is easy to assemble and produce. The shape and structure of the production gain the protection of patents.

Contact us if you need more details on Compatible Street Light Led. We are ready to answer your questions on packaging, logistics, certification or any other aspects about High Lumen Led Street Lamps、Waterproof Led Street Lamps. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : LED Street Light > LED Street Light
