LUXINT IP65 Water Proof High Lumen Output CE & RoHs Adjustable Led Road Lamp Street Light 200w

ip65 water proof high lumen output CE & RoHs adjustable led road lamp street light 200w
 Main parameters of led road lamp street light 200w

Model No.	LX-SL168B-200W
Equivalent	1000W High Pressure Sodium Lamp
LED Light Source	168pcs SMD3030
LED Luminous Efficiency	>120-130 lm/w
Lamp Total Power	200W
Power Efficiency	>95%
LED Luminous Flux	>24000 lm
Lamp Rated Luminous Flux	>22000 lm
Lamp Rated Luminous Efficiency	>110 lm/W
Color Rendering Index(CRI)	Ra>85
Color Temperature	Cool white: 5700-8000K
	Pure white: 4500-5500K
	Warm white: 2700-3500K
Beam Angle	150x70°
Input Voltage	AC90-305V / MEAN WELL Driver
Frequency Range	47-63Hz
Power Factor(PF)	>0.95
Total Harmonic Distortion(THD)	< 15%
Storage Temperature	-40℃--+80℃
Working Environment	-40℃--+50℃ ; 10%-95%RH
Junction Temperature(Tj)	60℃ ± 10%(ta=25℃)
Light Body and Lampshade Material	Aluminum Alloy
Working Lifetime	> 50,000hrs
IP Rating	IP65

Note: For this model series street light, the wattage from 30 to 320w are available, but for LX-SL120 street light(with 120pcs LED inside), the wattage are 150w, 200w and 240w are available   Main features of led road lamp street light 200w 1.LED Driver: famous brand  driver
2.Warm and cold color temperature are available
3.Quick and easy installation to minimize retrofit costs.
4.Patented heat dissipation technology for radiator;
5.Aluminum 6063 for resistance to corrosion, seawater, oil and lubricant etc;
6.Acrylic sealing reflector around LED; anodized oxide treated aluminum reflector & acrylic reflector available;
7.Closed corrosion-proof silicone ring for dustproof and waterproof
8.Beam angle: 150x70 degree. Dustproof cover, or Crystal PC reflector available
9.Lamp surface treated with anodization, corrosion-resistant, shake-resistant and artistic appearance
10.Terrific heat dissipation technology: LED temperature will be rapid transfered to fin-style heatsink through heatpipe
11.Energy saving: Replace 120-150w traditional lamps, saving more than 80%
12.Eco-friendly: No lead, mercury, UV interference
13.Long lifespan: more than 50000 hours, If LED works 11-12 hours per day, it can work over 10 years.
14.Certificate: CE,RoHS,SAA,PSE,IP65

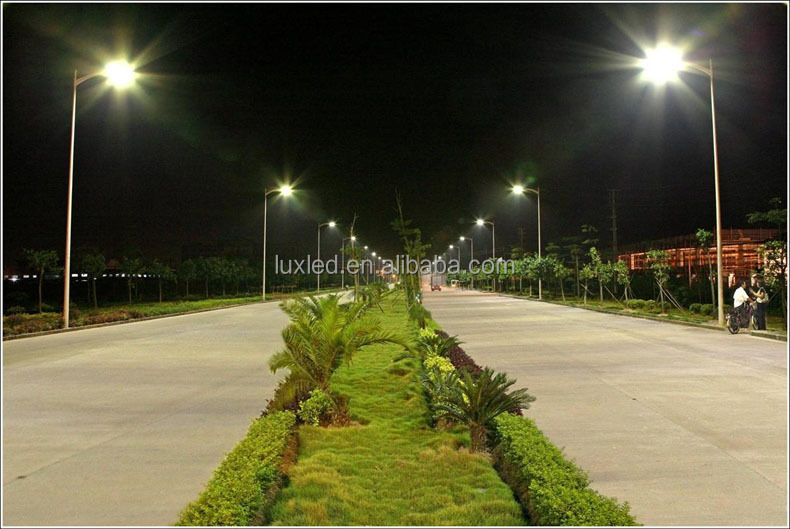

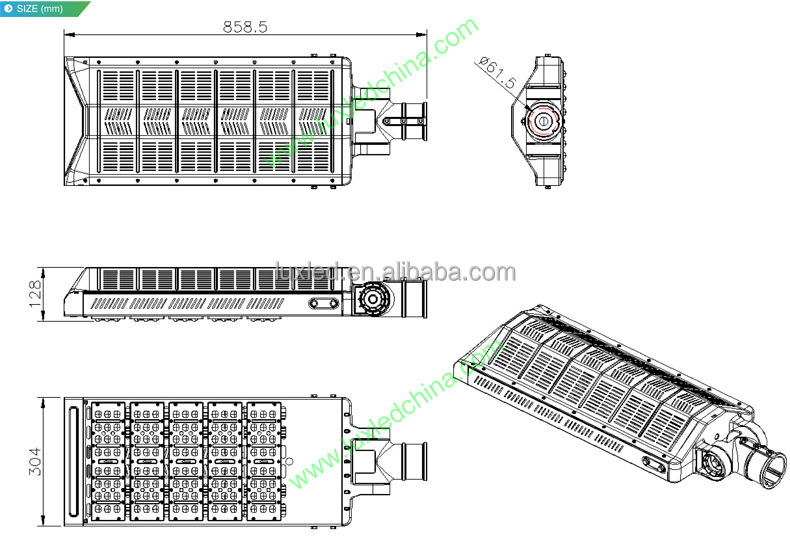

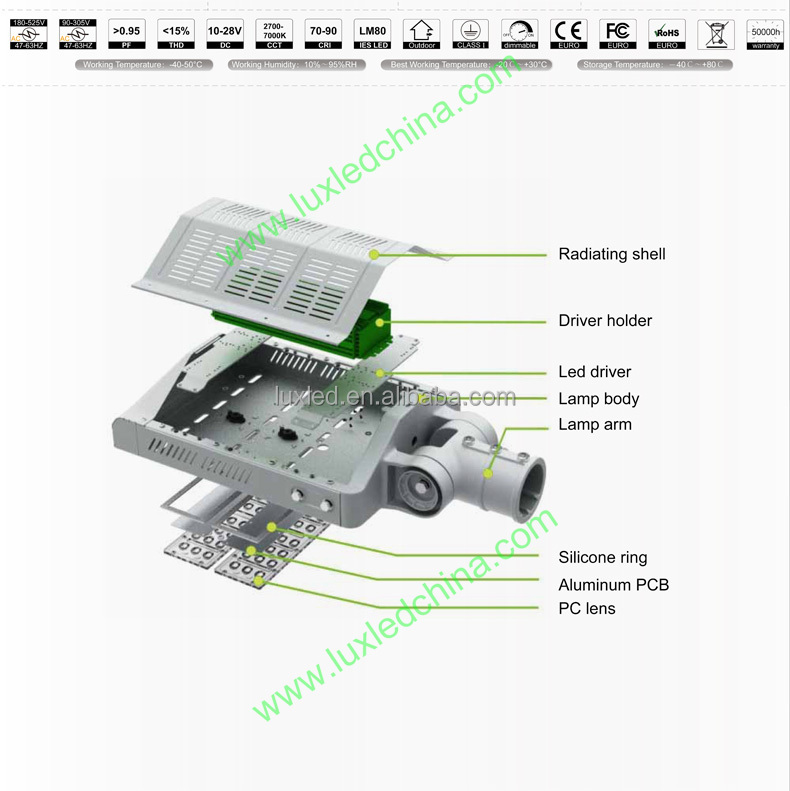

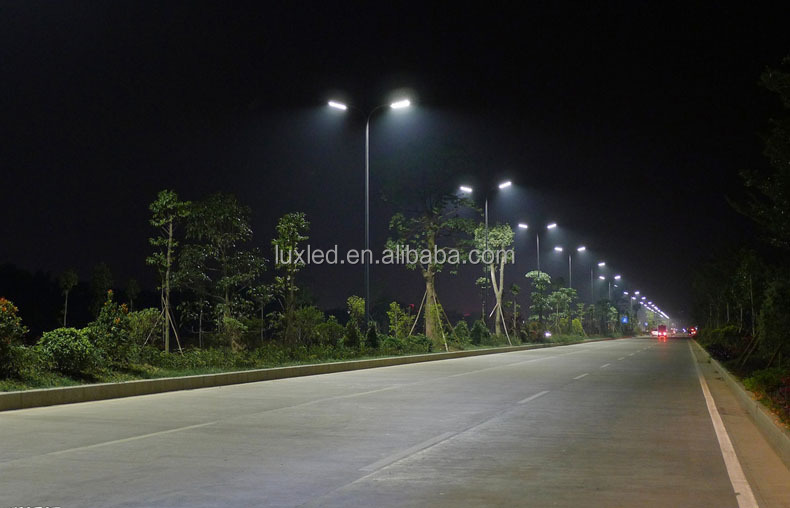

15.Warranty: 5 years     Introduction of the parts in led road lamp street light 200w    Size of led road lamp street light 200w         Application of led road lamp street light 200w Road lighting, community lighting, park lot lighting, dock lightingMain Road, Sidewalk, Square, School, Park, Garden, Factory, Residential Places, Villa and so on.       Packaging Information of led road lamp street light 200w

Net Weight	9.8kgs
Gross Weight	11.7kgs
Package Size(cm)	1100*395*195mm   /1 pcs

       Attention: When you install our led road lamp street light 200w, pls pay attention to below information.1). In order to make sure the light can work safety and stability, the ground line should be connected the earth. 2) When connecting the wires please turn off the power, and check whether the wires are connected correctly. Never connect the wires in opposite way, or the power should not be turned on. 3) Please keeping the trip bolt being fastening and reliable, in case of the light fall down of looseness.4) When finishing connect the wires, please use the insulation gummed tape to convolve the wires, confirm the insulation and solve the waterproof problem.    Our Service: LUX is proud of its led road lamp street light 200w series. Our street lights are new series of energy saving products that utilize high power LEDs as effective lighting source to traditional illumination.
Based on the classic modular design-our first generation LED Flood Light,. Although LEDs were deducted, but the light efficiency is much higher and much more effective based on the dual lens design, this kind of design has really achieved a high luminous efficiency, low power consumption and excellent heat dissipation characteristics. Full waterproof design (IP65) - white tempered glass, light transmission rate can be more than 93%- the power can contact cooling body directly – light in weight, which make a breakthrough in the aspects of heavy in weight. What’s more, the production is easy to assemble and produce. The shape and structure of the production gain the protection of patents.

Contact us if you need more details on Led Road Lamp Street Light 200w. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Ip65 Led Road Lamp Street Light 200w、Water Proof Led Road Lamp Street Light 200w. If these products fail to match your need, please contact us and we would like to provide relevant information.
